Đặc trưng:

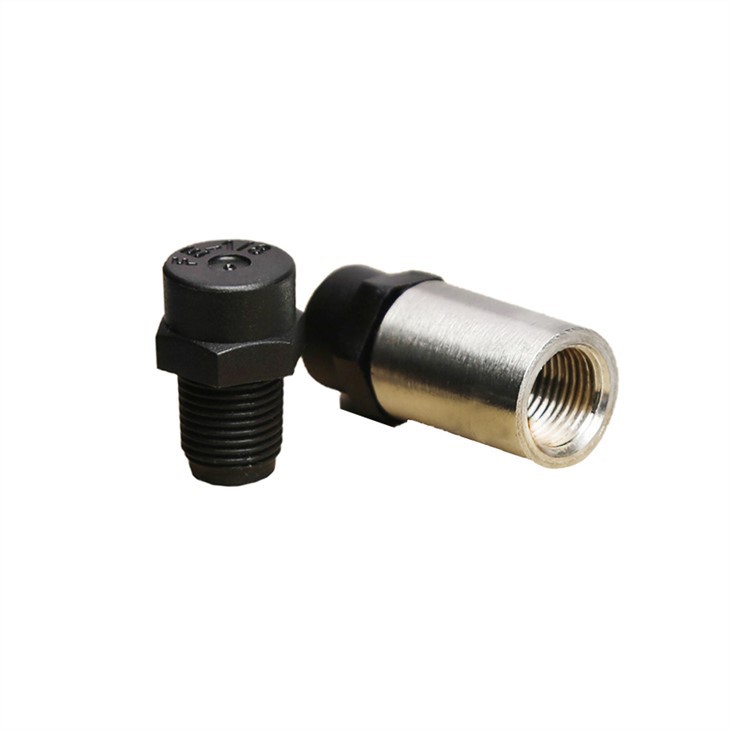

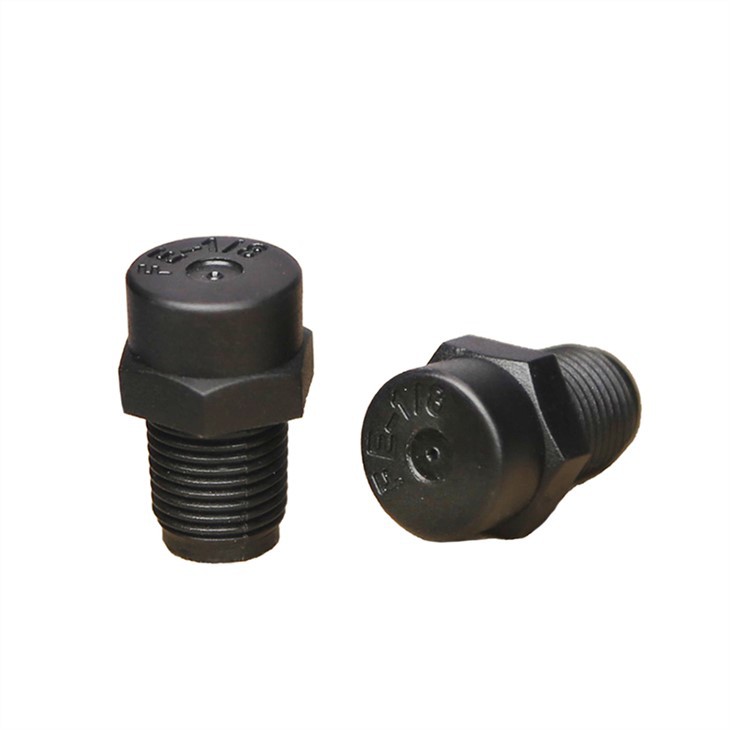

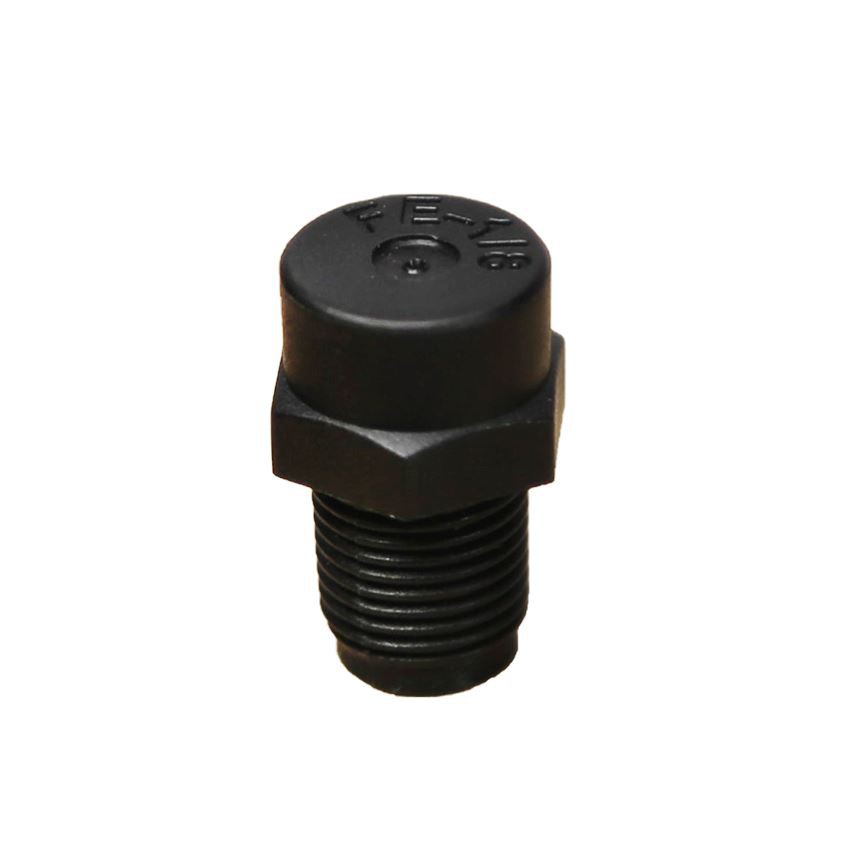

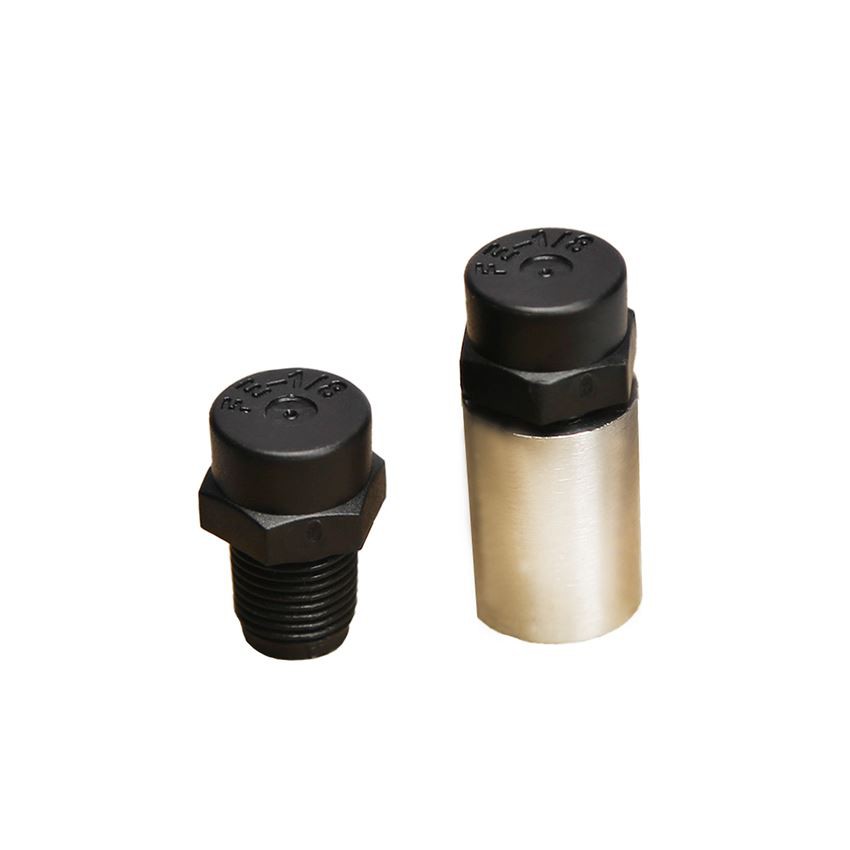

• Plastic Low Pressure Fog Misting Nozzles produce very fine fog with small droplets
• Material : PP ( Polypropylene ) Corrosion resistance and wearing resistance
•Working pressure 315bar
• Thread size : 1/8" Male
• Compact size, wide variety of flowrates.
• This series of misting nozzles do not need air supply,
• The system is simple; the spray mist is fine, full atomization, energy saving,
• Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.
Vòi phun sương mù áp suất thấp bằng nhựa | Vòi phun sương mù áp suất thấp |
Ứng dụng chung:
• Humidification
• Fog spraying
• Liquid spraying
• Flue gas evaporating cooling
• Artificial fog
FE Performance data | ||||
Thread Size | Droplet size | Flow rate | Pressure | Spray Angle |
inch | (μm) | L/H | quán ba | ( trình độ ) |
1/8 | 20-40 | 1.6-3.4 | 3-14 | 80-90 độ |
Chú phổ biến: vòi phun sương mù áp suất thấp bằng nhựa, Trung Quốc, nhà sản xuất, nhà cung cấp, nhà máy, giá cả
